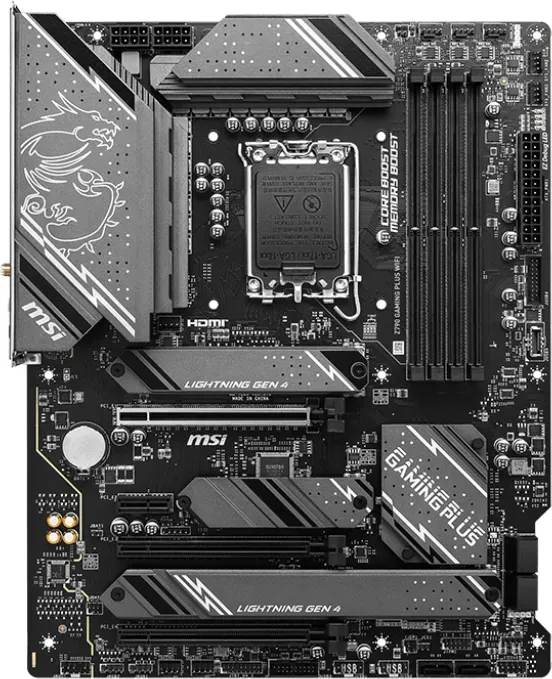

MSI Z790 Gaming Plus WIFI

Formfaktor

ATX

Sockel

Intel 1700 (LGA1700)

Chipsatz

Intel Z790

CPU-Kompatibilität

Celeron G6000, Pentium Gold G7000, Core i-12000, Core i-13000, Core i-14000

RAM-Slots

4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC), max. 256GB (UDIMM)

RAM-Taktfrequenz OC

max. DDR5-7200

RAM-Taktfrequenz nativ

DDR5-4800 (Celeron G6000), DDR5-4800 (Pentium Gold G7000), DDR5-4800 (Core i-12000), DDR5-4800/​DDR5-5600 (Core i-13000), DDR5-4800/​DDR5-5600 (Core i-14000)

ECC-Unterstützung

nein

Anschlüsse extern

1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.2 (20Gb/​s), 1x USB-A 3.1 (10Gb/​s), 2x USB-A 3.0 (5Gb/​s), 4x USB-A 2.0 (480Mb/​s), 1x RJ-45 2.5Gb LAN (Intel I226-V), 6x 3.5mm Klinke (Realtek ALC897), 1x PS/​2 Combo, 2x Antennenanschluss RP-SMA

PCIe-Slots

1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x1), 1x PCIe 3.0 x1

M.2-Slots

1x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4, 2280/​2260/​2242), 2x M.2/​M-Key (PCIe 4.0 x4/​SATA, 2280/​2260/​2242), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)

Sonstige Schnittstellen

6x SATA 6Gb/s (Z790)

Anschlüsse intern - USB

1x USB-C 3.1 Key-A Header (10Gb/​s), 2x USB 3.0 Header 20-Pin (5Gb/​s, 4x USB 3.0), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB 2.0)

Anschlüsse intern - sonstige

1x TPM-Header, 1x MSI USB4 Card Connector (JTBT_U4_1), 1x RTD3-Header, 1x Chassis Intrusion-Header, 1x MSI Tuning Controller Header (JDASH)

Anschlüsse intern - Kühlung

1x CPU-Lüfter 4-Pin, 1x Pumpe 4-Pin, 6x Lüfter 4-Pin

Anschlüsse intern - Stromversorgung

1x 24-Pin ATX, 2x 8-Pin EPS12V

Anschlüsse intern - Beleuchtung

2x 4-Pin RGB (+12V/​G/​R/​B, max. 3A), 2x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, JARGB_V2)

Buttons/Switches

USB BIOS Flashback (extern)

Audio

Realtek ALC897

Grafik

iGPU

Wireless

Wi-Fi 6E (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2, Intel), Bluetooth 5.3

RAID-Level

0/​1/​5/​10

VRM-Design

14+1+1, 15 virtuelle CPU-Phasen (14+1), 15 reale CPU-Phasen (14+1)

MOSFETs VCORE

14x 55A AOZ5016QI (DrMOS)

MOSFETs SOC/VCCGT

1x 55A AOZ5016QI (DrMOS)

MOSFETs VDD_MISC/VCCSA/VCCAUX

1x

PWM-Controller

RAA229131 (max. 20 Phasen)

Beleuchtung

N/​A

BIOS

1x 32MB (256Mb)

Besonderheiten

Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), I/​O-Blende integriert, 4x M.2-Passivkühler
