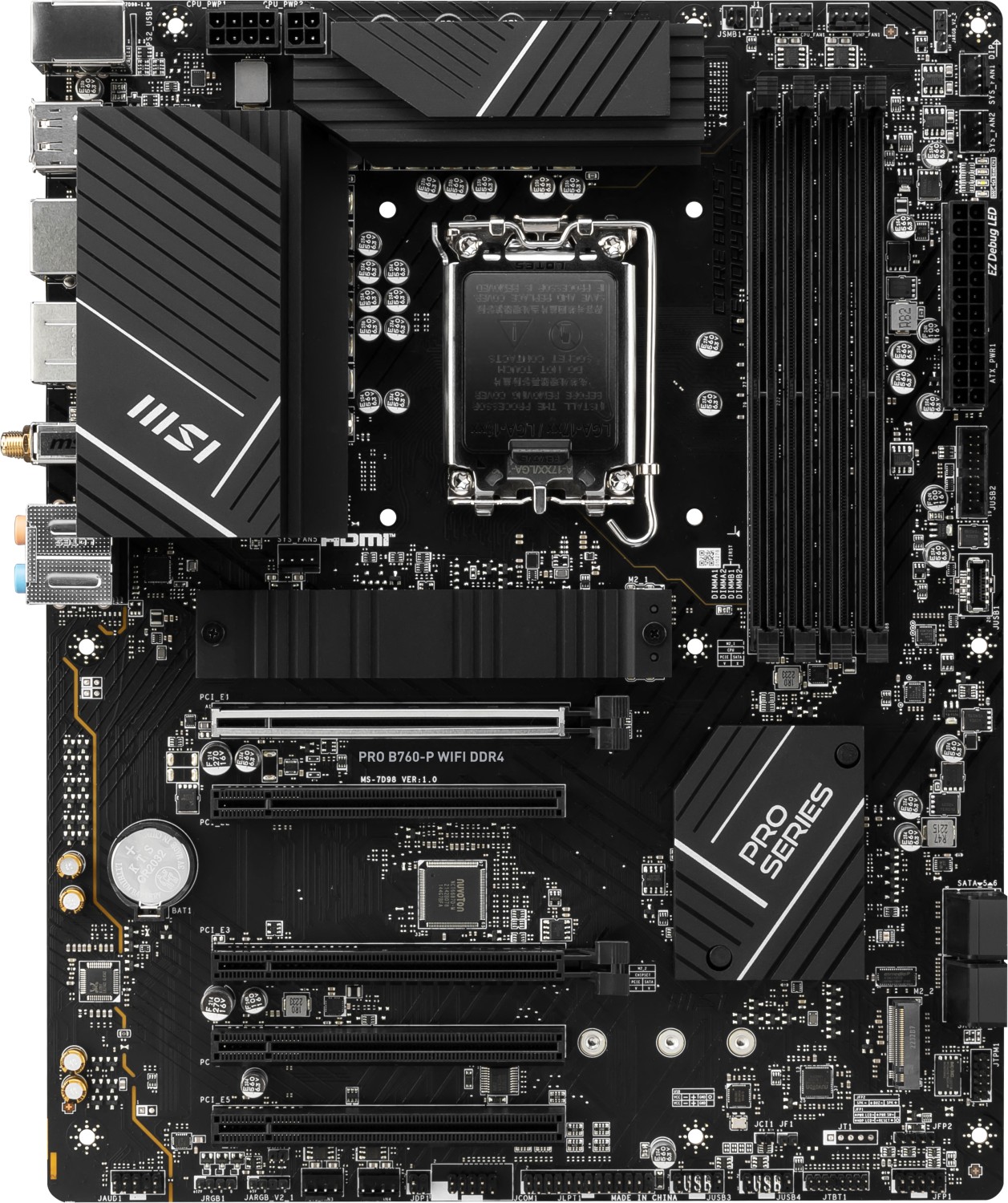

MSI PRO B760-P WIFI DDR4

Formfaktor

ATX

Sockel

Intel 1700 (LGA1700)

Chipsatz

Intel B760

CPU-Kompatibilität

Celeron G6000, Pentium Gold G7000, Core i-12000, Core i-13000, Core i-14000

RAM-Slots

4x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 128GB (UDIMM)

RAM-Taktfrequenz OC

max. DDR4-5333

RAM-Taktfrequenz nativ

DDR4-3200 (Celeron G6000), DDR4-3200 (Pentium Gold G7000), DDR4-3200 (Core i-12000), DDR4-3200 (Core i-13000), DDR4-3200 (Core i-14000)

ECC-Unterstützung

nein

Anschlüsse extern

1x HDMI 2.1 (iGPU), 1x DisplayPort 1.4 (iGPU), 1x USB-C 3.1 (10Gb/​s), 2x USB-A 3.1 (10Gb/​s), 4x USB-A 2.0 (480Mb/​s), 1x RJ-45 2.5Gb LAN (Realtek RTL8125BG), 1x Toslink S/​PDIF Out, 5x 3.5mm Klinke (Realtek ALC897), 1x PS/​2 Combo, 2x Antennenanschluss RP-SMA

PCIe-Slots

2x PCIe 4.0 x16 (1x x16, 1x x4), 3x PCIe 3.0 x16 (x1)

M.2-Slots

1x M.2/​M-Key (PCIe 4.0 x4, 22110/​2280/​2260/​2242), 1x M.2/​M-Key (PCIe 4.0 x4/​SATA, 2280/​2260/​2242), 1x M.2/​E-Key (2230, belegt mit WiFi+BT-Modul)

Sonstige Schnittstellen

4x SATA 6Gb/s (B760)

Anschlüsse intern - USB

1x USB-C 3.0 Key-A Header (5Gb/​s), 1x USB 3.0 Header 20-Pin (5Gb/​s, 2x USB 3.0), 2x USB 2.0 Header 9-Pin (480Mb/​s, 4x USB 2.0)

Anschlüsse intern - sonstige

1x seriell-Header, 1x parallel-Header, 1x TPM-Header, 1x Thunderbolt-Header 15-Pin, 1x Chassis Intrusion-Header

Anschlüsse intern - Kühlung

1x CPU-Lüfter 4-Pin, 5x Lüfter 4-Pin, 1x Pumpe 4-Pin

Anschlüsse intern - Stromversorgung

1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V

Anschlüsse intern - Beleuchtung

1x 4-Pin RGB (+12V/​G/​R/​B, max. 3A), 2x 3-Pin ARGB (+5V/​DATA/​GND, max. 3A, JARGB_V2)

Audio

Realtek ALC897

Grafik

iGPU

Wireless

Wi-Fi 6E (WLAN 802.11a/​b/​g/​n/​ac/​ax, 2x2), Bluetooth 5.3

RAID-Level

0/​1/​5/​10

VRM-Design

12+1, 13 virtuelle CPU-Phasen (2x6+1), 7 reale CPU-Phasen (6+1)

MOSFETs VCORE

12x 53A AONS36308/​AONS36303 (High-/​Low-Side)

MOSFETs SOC/VCCGT

2x 53A AONS36308/​AONS36303 (High-/​Low-Side)

PWM-Controller

RT3628AE (max. 9 Phasen)

Beleuchtung

N/​A

BIOS

1x 32MB (256Mb)

Besonderheiten

Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), 1x M.2-Passivkühler
