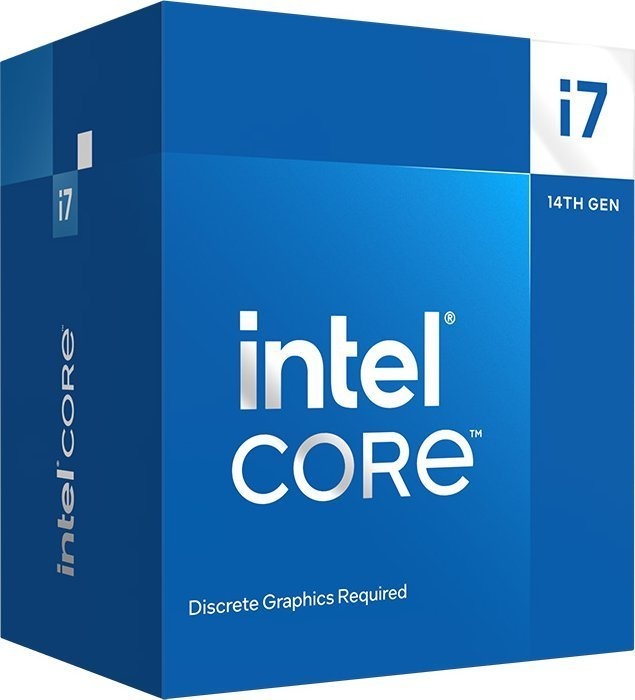

Intel Core i7-14700F, 8C+12c/28T, 2.10-5.40GHz
Produktinformationen "Intel Core i7-14700F, 8C+12c/28T, 2.10-5.40GHz"
Kerne20 (8C+12c)
Threads28 (16+12)
Turbotakt5.40GHz (Turbo Boost Max 3.0), 5.30GHz (P-Core), 4.20GHz (E-Core)
Basistakt2.10GHz (P-Core), 1.50GHz (E-Core)
TDP65W (Processor Base Power), 219W (Maximum Turbo Power)
Grafiknein
SockelIntel 1700 (LGA1700)
Chipsatz-EignungB660, B760, H610, H610E, H670, H770, Q670, Q670E, R680E, W680, Z690, Z790
CodenameRaptor Lake-S
ArchitekturRaptor Cove (P-Core) + Gracemont (E-Core)
FertigungIntel 7
L2-Cache28MB (8x 2MB + 12x 1MB)
L3-Cache33MB
SpeichercontrollerDual Channel DDR4/DDR5, max. 192GB
Speicherkompatibilitätmax. DDR4-3200 (PC4-25600, 51.2GB/s), max. DDR5-5600 (PC5-44800, 89.6GB/s)
Speicherkompatibilität erweitert (DIMM)DDR5-5600 (1DPC/1R), DDR5-5600 (1DPC/2R), DDR5-4000 (2DPC/1R), DDR5-3600 (2DPC/2R)
Speicherkompatibilität erweitert (SO-DIMM)DDR5-5200 (1DPC/1R), DDR5-5200 (1DPC/2R), DDR5-4400 (2DPC/1R), DDR5-4000 (2DPC/2R)
ECC-Unterstützungnein
SMTja (P-Core, Intel Hyper-Threading)
Fernwartungnein
Freier Multiplikatornein
CPU-FunktionenAES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.0, Idle States, Instruction Set 64bit (Intel 64), ISM, MBEC, OS Guard, Secure Key, Speed Shift, SSE4.1, SSE4.2, Thermal Monitoring, Thread Director, VMD, VT-d, VT-x, VT-x EPT, XD Bit
Systemeignung1 Sockel (1S)
PCIe-Lanes16x PCIe 5.0, 4x PCIe 4.0
Chipsatz-InterfaceDMI 4.0, 16GT/s (PCIe 4.0 x8)
Lieferumfangohne CPU-Kühler
Einführung2024/Q1 (8.1.2024)
SegmentDesktop (Mainstream)
SteppingB0, Spec Code: SRN3Z
Temperatur max.100°C (Tjunction)
