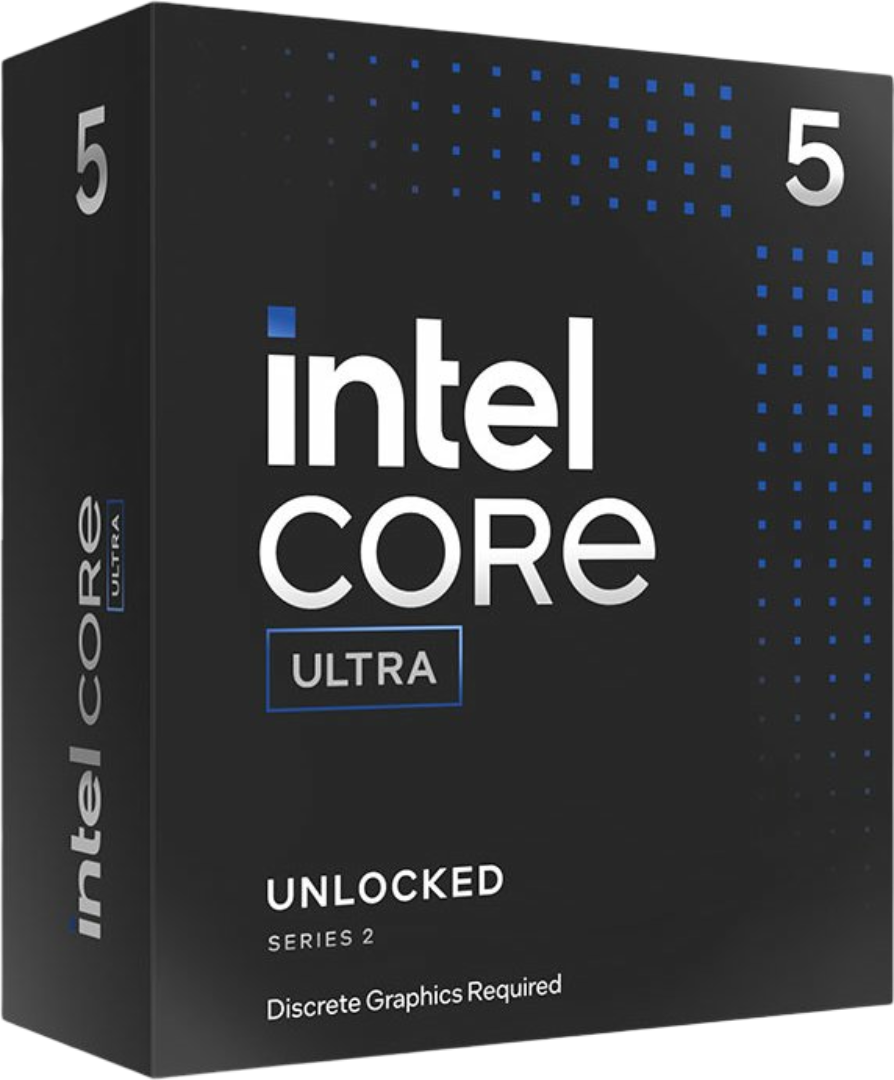

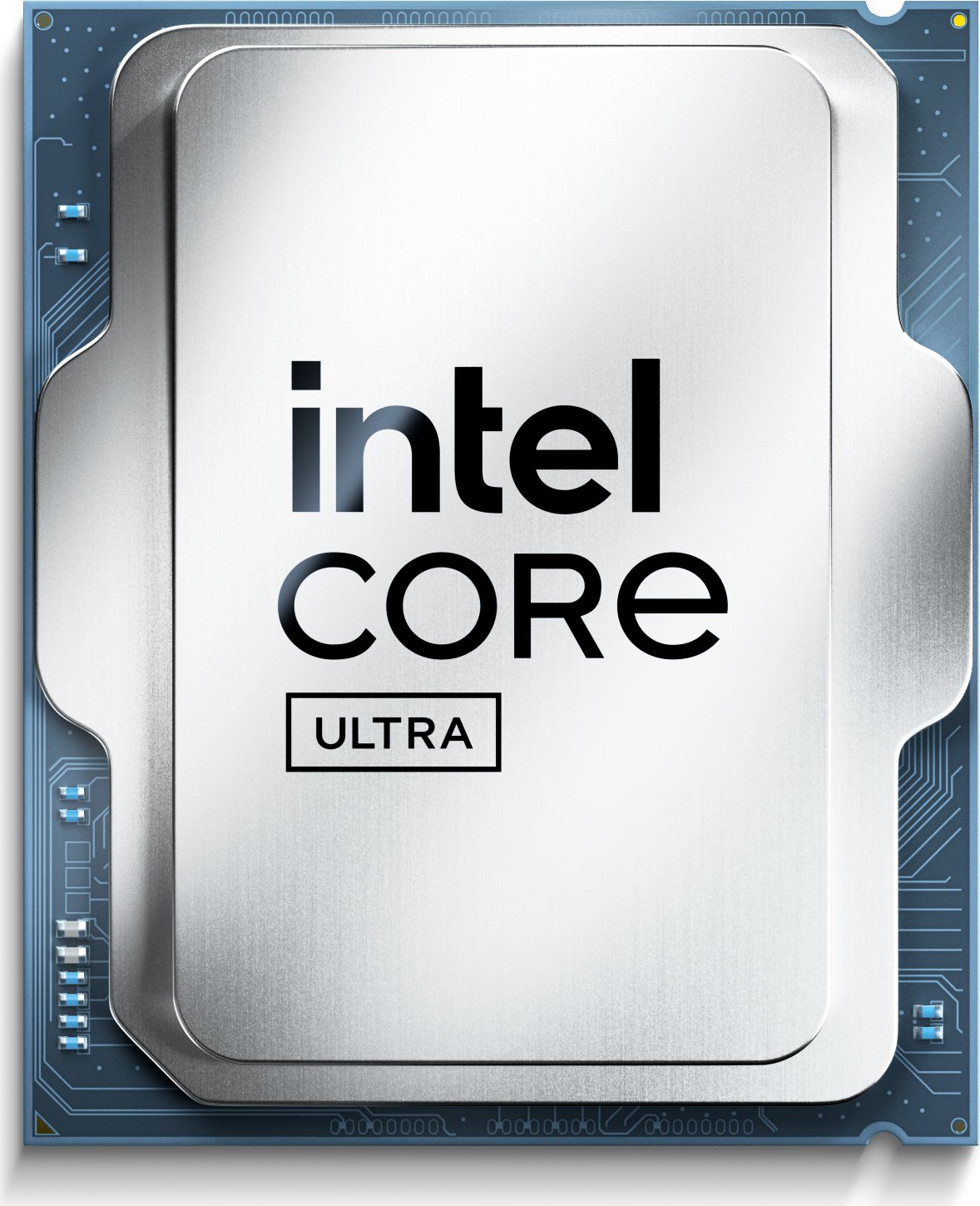

Intel Core Ultra 5 245KF, 6C+8c/14T, 4.20-5.20GHz
Produktinformationen "Intel Core Ultra 5 245KF, 6C+8c/14T, 4.20-5.20GHz"
Kerne14 (6C+8c)
Threads14 (6+8)
Turbotakt5.20GHz (Turbo Boost 2.0), 5.20GHz (P-Core), 4.60GHz (E-Core)
Basistakt4.20GHz (P-Core), 3.60GHz (E-Core)
TDP125W (Processor Base Power), 159W (Maximum Turbo Power)
Grafiknein
SockelIntel 1851 (LGA1851)
Chipsatz-EignungB860, H810, Z890, W880
CodenameArrow Lake-S
ArchitekturLion Cove (P-Core) + Skymont (E-Core)
FertigungTSMC 3nm
L2-Cache26MiB (6x 3MiB + 2x 4MiB)
L3-Cache24MiB
SpeichercontrollerDual Channel DDR5, max. 256GB
Speicherkompatibilitätmax. DDR5-5600 UDIMM (PC5-44800, 89.6GB/s), max. DDR5-6400 CUDIMM (PC5-51200, 102.4GB/s)
ECC-Unterstützungnein
SMTnein
Fernwartungnein
Freier Multiplikatorja
CPU-FunktionenAES-NI, AVX, AVX2, Boot Guard, CET, DL Boost, EIST, GNA 3.5, Idle States, Instruction Set 64bit (Intel 64), ISM, MBEC, OS Guard, Secure Key, Speed Shift, SSE4.1, SSE4.2, Thermal Monitoring, Thread Director, Thunderbolt 4, TVB, TXT, VMD, VT-d, VT-x, VT-x EPT, XD Bit
Systemeignung1 Sockel (1S)
PCIe-Lanes24x PCIe 5.0 (verfügbar: 20)
InterfaceDMI 4.0, 16GT/s (PCIe 4.0 x8)
AI-Rechenleistung (NPU)13 TOPS (Intel AI Boost), Gesamthöchstleistung: 22 TOPS
Lieferumfangohne CPU-Kühler
Einführung2024/Q4 (24.10.2024)
SegmentDesktop (Mainstream)
SteppingB0, Spec Code: SRQCY
Temperatur max.105°C (Tjunction)
| Sockel: | Intel 1851 Low |
|---|
